In knitwear manufacturing, collar attachment has long been one of the most challenging processes for quality control.
Wrinkled necklines, misaligned seam joints, uneven collar heights, curled rib edges, and skipped stitches are common issues. The root cause is simple: traditional collar attachment relies heavily on operator skill and experience. Experienced workers control fabric tension by feel, while less experienced operators often struggle to achieve consistent results. As a result, product quality depends largely on individual craftsmanship rather than a standardized process.
The SUPREME F214 Overlock Collar Rib Attaching Machine was developed to change that.
What makes collar attachment difficult? Alignment, tension control, and judgment.
Operators must accurately align rib joints with garment seams while carefully controlling fabric feeding to prevent stretching or gathering. Quality depends almost entirely on the operator's experience.
The F214 transforms these manual skills into programmable and measurable machine actions.

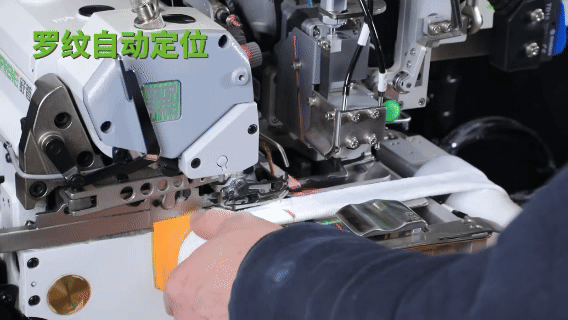

A crosshair positioning system automatically aligns the rib joint with the garment seam, eliminating repeated manual adjustments and reducing alignment errors.
The result is faster operation and improved productivity.

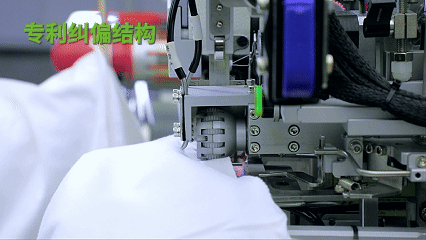

SUPREME's self-developed fabric edge guiding mechanism continuously monitors and corrects the sewing path in real time.
This minimizes deviation, prevents seam defects, reduces downtime, and helps maintain stable quality.

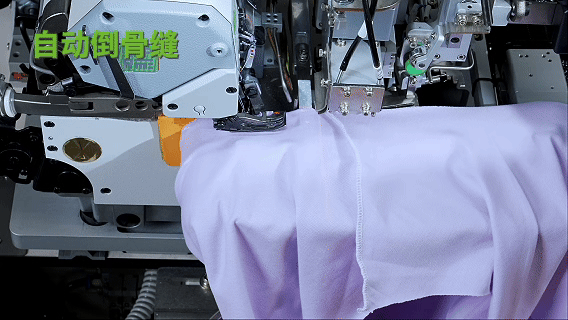

Through the combined action of mechanical guidance and air blowing technology, seam allowances are automatically positioned in a consistent direction throughout the sewing process.
No manual adjustment is required, ensuring uniform seam appearance and reducing labor dependency.

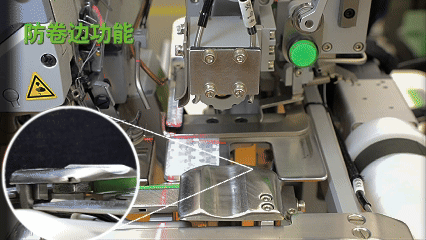

To address the common issue of rib fabric edge curling, the F214 is equipped with a dedicated anti-curling device that keeps sewing edges flat and clean.
This reduces rework, eliminates additional trimming processes, and improves production efficiency.
Together, these intelligent functions effectively embed the expertise of experienced operators into the machine itself. Operators simply load the material, start the machine, and remove a perfectly sewn neckline.
Another challenge in collar attachment is uneven tension distribution around the neckline.
Front and back curves differ, and shoulder areas often vary in thickness and elasticity. Traditionally, operators manually adjust feeding speeds to compensate for these variations, making uneven collar heights a frequent quality issue.

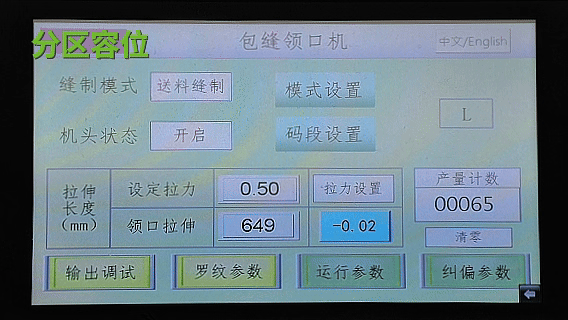

The F214 divides the entire neckline into four programmable sections: front, back, left, and right.
Ease allowance can be independently adjusted for each section according to fabric characteristics. The machine automatically modifies feeding speed where additional ease is required while maintaining stable feeding elsewhere.
Whether processing lightweight fabrics, heavyweight materials, or highly elastic knitwear, the finished neckline remains smooth, flat, and wrinkle-free.
Knitwear manufacturers frequently handle multiple styles and size variations.
With traditional equipment, changing sizes often requires mechanical adjustments, trial sewing, and repeated fine-tuning, resulting in lengthy downtime.

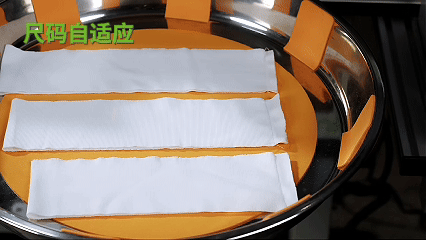

The F214 features built-in size parameters covering XS to 4XL. Operators can switch sizes with a single touch, while the machine automatically adjusts expansion dimensions accordingly.
Previously saved style parameters can be recalled instantly, eliminating time-consuming setup procedures.
No production interruption. No complex adjustments.

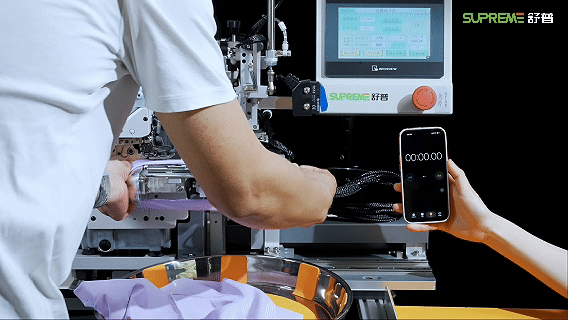

The F214 completes collar attachment in an average of just 15 seconds per garment.
A single machine can produce up to 2,400 pieces during a 10-hour shift, and one operator can manage two machines simultaneously, effectively doubling productivity.
More importantly, the machine dramatically reduces skill dependency. New employees can become productive after only a short training period and achieve quality levels comparable to experienced operators.
The F214 is not simply replicating human skills—it is replacing subjective judgment with standardized processes.
By transforming collar attachment into a parameter-driven and automated operation, manufacturers can address some of the industry's most persistent challenges, including labor shortages, high training costs, and inconsistent quality.
The SUPREME F214 Overlock Collar Rib Attaching Machine is more than an automation device. It is a complete solution that converts craftsmanship into standardization, turning collar attachment from a skill-dependent process into a controllable, repeatable, and scalable manufacturing operation.
For apparel manufacturers, this represents the true value of automation: not replacing people, but enabling production standards that consistently exceed the limitations of manual operation.
