Product Introduction

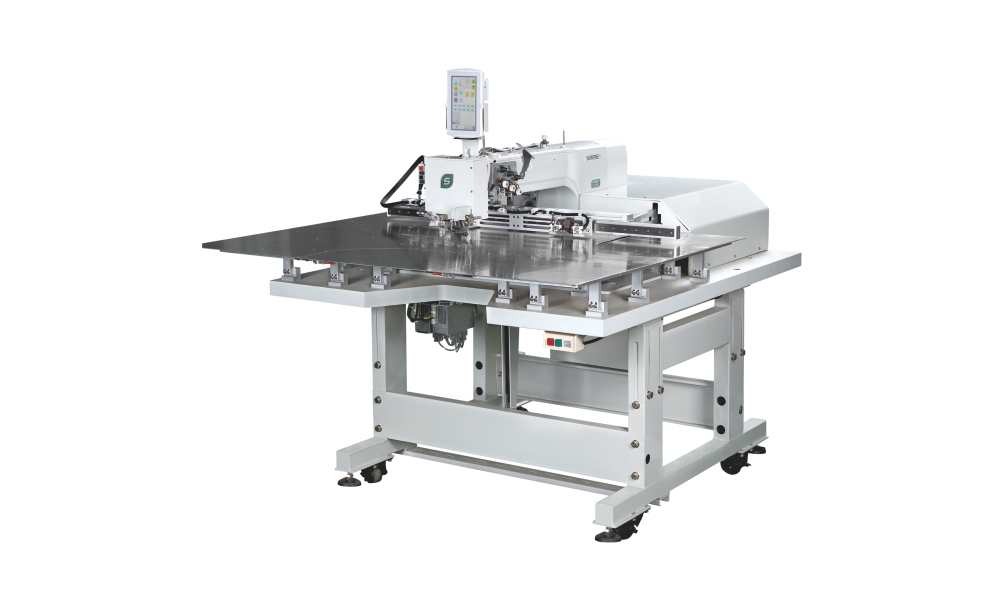

SP-6040AS-H/TN

Electronic Pattern Sewing Machine
  • SP-6040AS-H/TN

Improve sewing quality

  • One pattern sewer can sew two different colors of the surface line, line trace beautiful and high precision, good stability.
  • Reduce manual production process, save time and greatly improve efficiency.
  • Large sewing area can be used to sew a pair of large-size vamp with twocolor stitching lines by once time.

Strengthening machine needle penetration force

Powerful direct drive motor makes the machine needle penetration force more forcerul. The speed of start and stop is faster. The speed 2800rpm improves the efficiency to a further extent.

Standard broken-needle sensor

To be used for detection of thread broken .It automatically stops and informs the operator once it detects thread broken .

Fast and convenient program editining

Using PD3000 programming software, it is easy to edit pattern, and AS is more compatible with DA/DE, PLK format pattern editing, which simplify the process of pattern editing. With large screen LCD interface and new touch screen control , you can complete the man-machine dialogue using finger. You can create and editing the data easily according to the icons and orders;

Technical Parameters

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding mode
    Stitch Length
    Presser foot drive method
    Press foot height
    Motor
    Power
    Air pressure
    Max. needles number
    Maximum storage of stitch
    2- step presser foot
    Big foot presser height
    Big foot presser method
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Thread Wiper
    Cutting device
    Machine size
    Packing size
    Weight
  • SP-6040AS-H/TN
    Sing-needle flat seam
    2,800 rpm
    600×400mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    Pneumatic
    Max. 30mm
    AC servomotor 550W
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8L/min
    20,000 needles/1 pattern
    Maximum 500000stitch in inner storage
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    1400×1800×1400
    1500×1900×1500
    350Kg
