Product Introduction

SP-1310/2210/3020AP

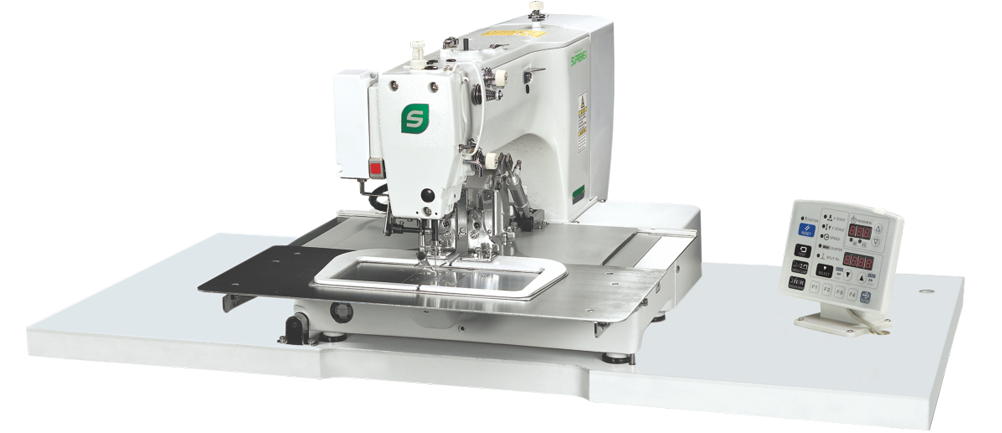

Electronic Pattern Sewing Machine
  • SP-3020AP-H/M/X
  • SP-1310AP-HS/MS
  • SP-1310AP-H/M/X
  • SP-2210AP-H/M/X

Characters

  • Patterns are Compatible with BA patterns of 210D,210E and PLK series.
  • Extraordinary data compatibility reduces repeated labor of inputing program

Technical Parameters

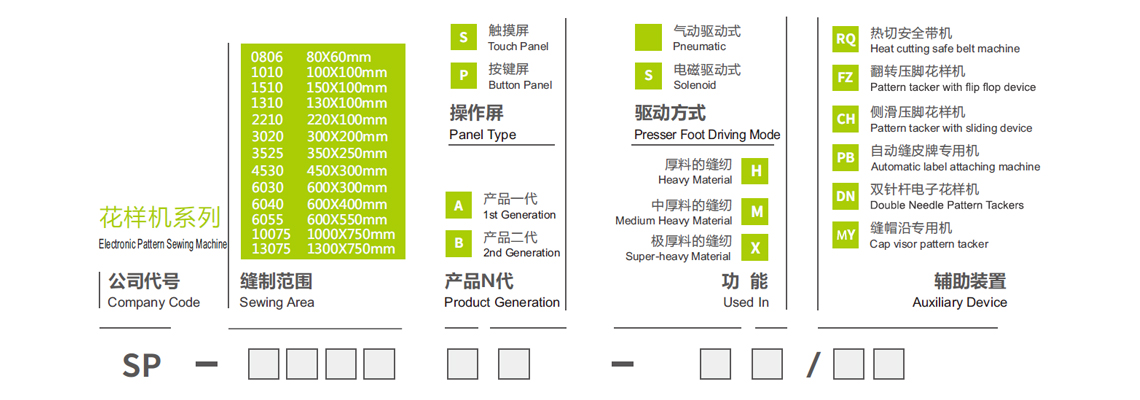

Model and Standard +

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding mode
    Stitch Length
    Maximum stitch amount
    Storage amount of stitches
    Presser foot drive method
    Press foot height
    2- step presser foot
    Big foot presser height
    Big foot presser method
    Raising amount by intermittent presser foot
    Stroke by intermittent presser foot
    Thread Wiper
    Cutting device
    Customer program amount
    Recyle programme No.
    Motor
    Weight
    Power
    Air pressure
  • SP-3020AP-H/M/X
    Sing-needle flat seam
    2,800 rpm
    300×100mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    500000 stitch can be stored
    Pulse motor drive；Pneumatic
    Max. 30mm
    Divided presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    carton：Head Control box：about 104kg、Control box：20kg、table&stand：30kg；wooden case：about 160kg
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8L/min
  • SP-2210AP-H/M/X
    Sing-needle flat seam
    2,800 rpm
    220×100mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    500000 stitch can be stored
    Pulse motor drive；Pneumatic
    Max. 30mm
    Divided presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    carton：Head Control box：about 104kg、Control box：20kg、table&stand：30kg；wooden case：about 160kg
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8L/min
  • SP-1310AP-H/M/X
    Sing-needle flat seam
    2,800 rpm
    Max. 130×100mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    500000 stitch can be stored
    Pulse motor drive；Pneumatic
    Max. 25mm；Max. 30mm
    Integrated presser foot；Divided presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    carton：Head Control box：about 104kg、Control box：20kg、table&stand：30kg；wooden case：about 160kg
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8L/min
  • SP-1310AP-HS/MS
    Sing-needle flat seam
    2,800 rpm
    Max. 130×100mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    500000 stitch can be stored
    Pulse motor drive；Pneumatic
    Max. 25mm；Max. 30mm
    Integrated presser foot；Divided presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    carton：Head Control box：about 104kg、Control box：20kg、table&stand：30kg；wooden case：about 160kg
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8L/min
