Product Introduction

SP-F214

Automatic t shirt neck rib attaching machine


Advantages

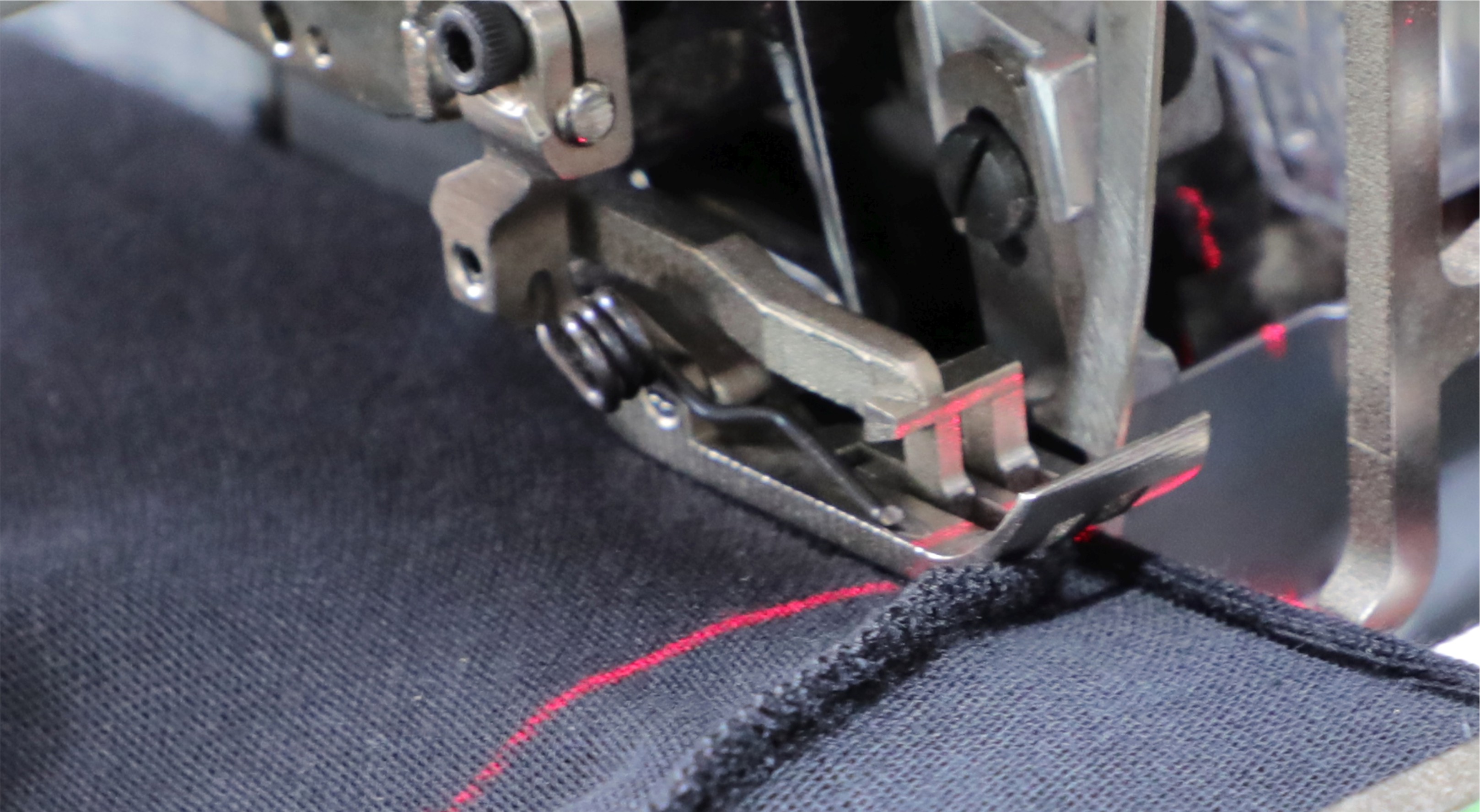

  • Cross-laser position mechanism: It is convenient to align the thread splicing place with the bone seam of the clothes, the sewing stitch is flat, and the stitching to the rib margin is consistent
  • Automatic positioning mechanism: automatically adjust the starting point (bone position) to wait for sewing
  • Anti-curling mechanism: Solve the problem of involution of clothing materials, further solve the phenomenon of overlock loss , and improve sewing quality

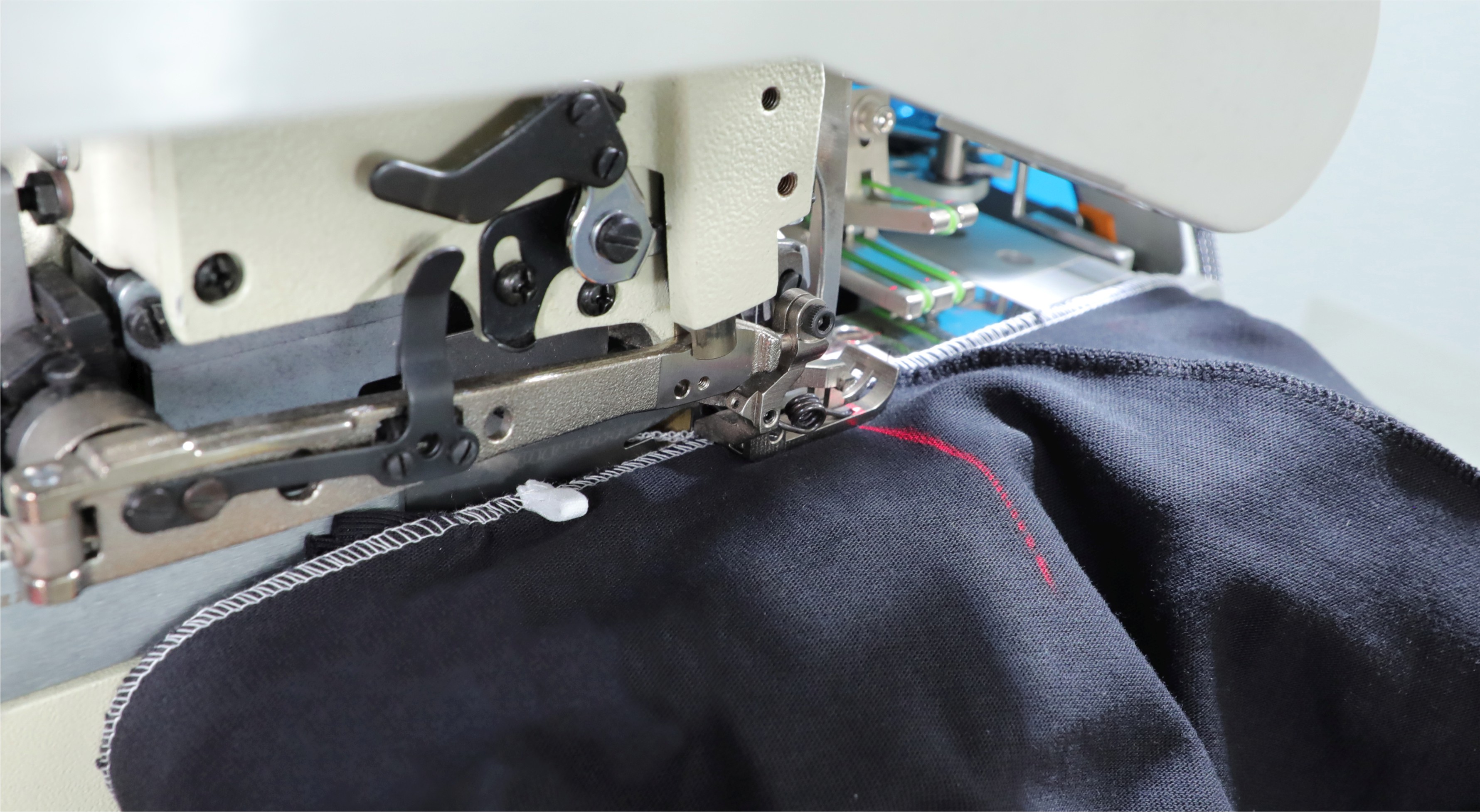

  • Deviation-correcting guiding mechanism: small sewing deviation and no off-thread phenomenon

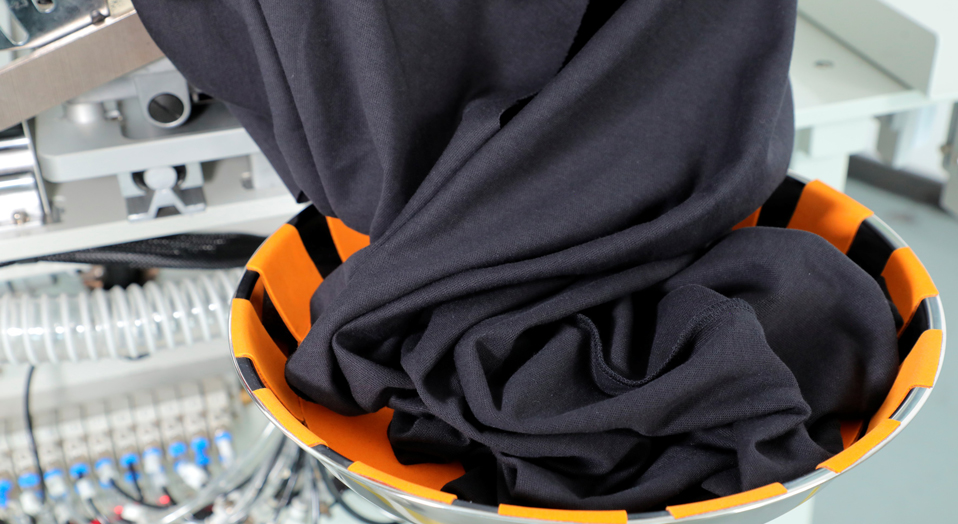

  • Rotating material tray: Synchronous sewing and rotation of clothing material can prevent the material from coiling when sewing material, and improve the quality of the upper neckline

Application

Applicable to knitted round neck sweaters, it attaches the neck rib to the garment pieces

Technical Parameters

  • Model
    Highest sewing speed
    Needle model
    Clothing size rang
    Voltage
    Air pressure
    Weight
    Machine size
    Power
  • SP-F214
    4500rpm
    DC9/DC11
    S-XXXL(510mm-828mm)
    Single phase 200V-240V
    0.5Mpa、1.8 L/min
    170Kg
    950×900×1370mm(L*W*H)
    750W

Download
