Product Introduction

SP-F164

Drawcord inserting machine

Advantages

  • One machine for multiple purposes: one-key switching between sweatpants and hoodies.
  • Rope threading mode: semi-automatic and fully automatic one-button switching.
  • Rope threading speed: The rope threading/out rope speed can be adjusted through the touch screen
  • Rope threading strength: real-time detection of rope threading strength, to avoid clothing damage due to excessive strength when threading the rope to the seam interface.

Advantages

  • Expansion mechanism: It can be rotated 90 degrees, and the lifting height can be adjusted, which can adapt to the working habits of different groups of people.
  • Expansion plate: The working angle can be adjusted by 90 degrees, and the special craft jig for the zipper hoodie is standard.
  • The working range of the expansion tray: any choice in the clothing size preset storage system.
  • Reduce labor intensity and get rid of the dependence on skilled labor.

Efficiency

The process integration is completed in one step, the labor intensity is reduced, and the efficiency is improved. It takes about 10-14 seconds per piece to complete a trouser rope, hat rope and other stringing processes.

Application

It is suitable for the threading process of flat buttonholes, round eyelets, metal round eyelets such as pullovers, casual pants, and zipper hoodies.

Technical Parameters

  • Model
    Pants diameter
    Cap diameter
    Cord hole type
    String dismeter
    Air pressure
    Weight
    Dimensions
    Voltage
  • SP-F164
    φ191mm-φ445mm
    φ116mm-φ121mm

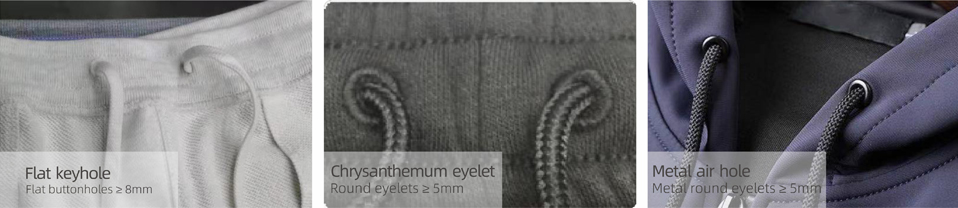

    Flat buttonhole＞8mm; bird eye embroidery hole＞5mm, metal air hole＞5mm
    Round rope: 5mm-6mm Flat rope: 5mm-9mm
    0.5Mpa、0.5L/min
    200Kg
    1170×520×1087mm（L×W×H）
    Single phase 200-240V
