Product Introduction

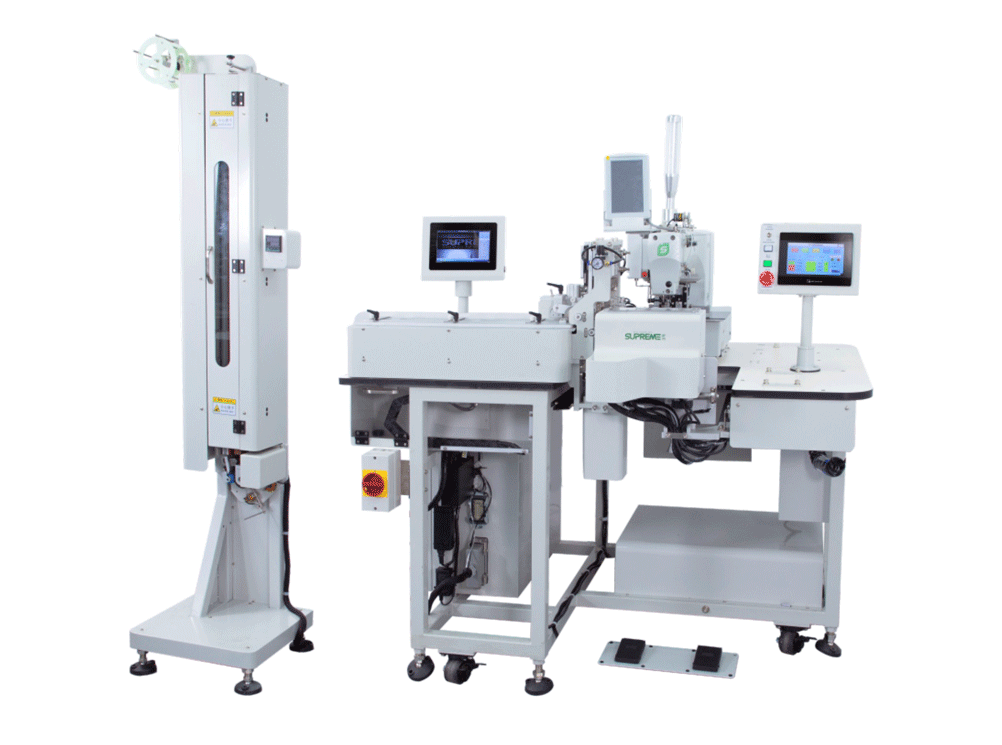

SP-F175

Ultrasonic welding elastic stitching machine

Advantages

  • The encoder is used to identify the length of the elastic band to ensure that the length of each elastic band is consistent.
  • Ultrasonic welding is adopted, the welding is neat and firm, and the joints are joined after welding, flat and no opening, and the quality and comfort are improved.
  • Automatic detection of elastic splicing head, automatic cutting, cutting length can be set.
  • Standard bottom thread detection device, when the bottom thread is used up and needs to be replaced, it will automatically stop and give an alarm.

Advantages

  • Visual recognition system: Aimed at sewing with two-color elastic bands. (Multi-color or similar two-color elastic stitching can be equipped with a visual recognition system), which can accurately identify the position of the LOGO, and ensure the accurate half-folding of the LOGO and the elastic stitching. Each time it can sew one size to two sizes continuously. The length of the elastic band can save unnecessary waste of the elastic band.

Efficiency

The whole process is automatic operation, automatic feeding, automatic cutting, automatic welding, automatic sewing, automatic receiving, etc. The number of rubber bands processed per hour is about 650, the output is increased by 5 times, and one person can operate five machines at the same time.

Application

It is suitable for a variety of specifications of rubber band welding splicing process, smooth and no splicing interface, and the stitches are smooth and beautiful.

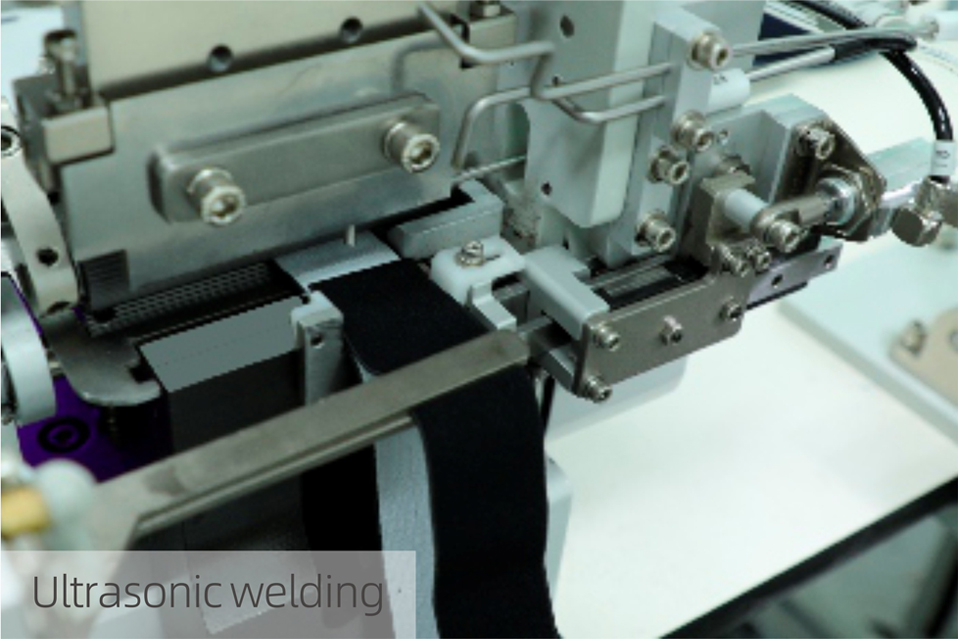

Ultrasonic welding

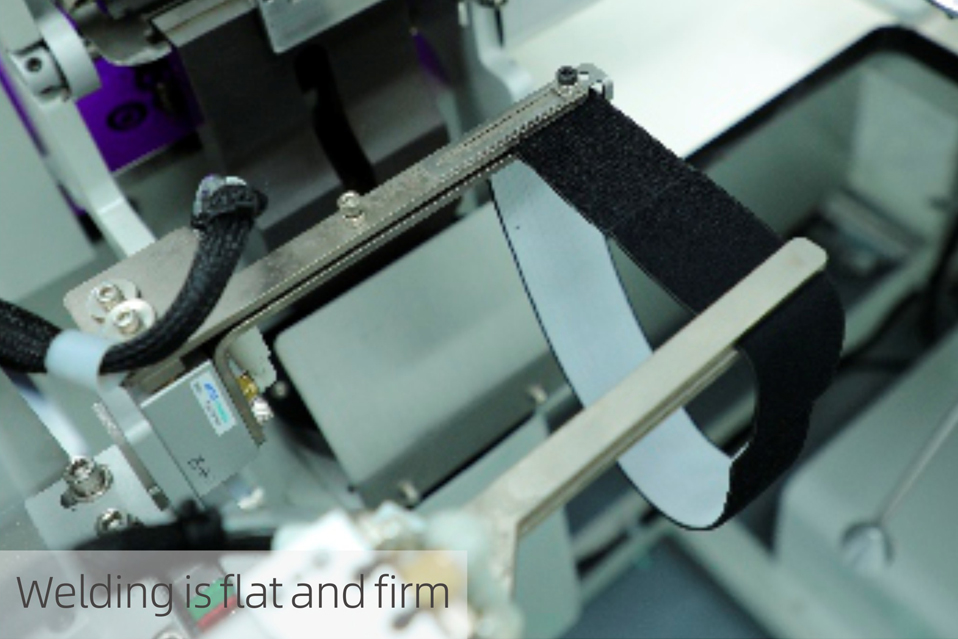

Welding is flat and firm

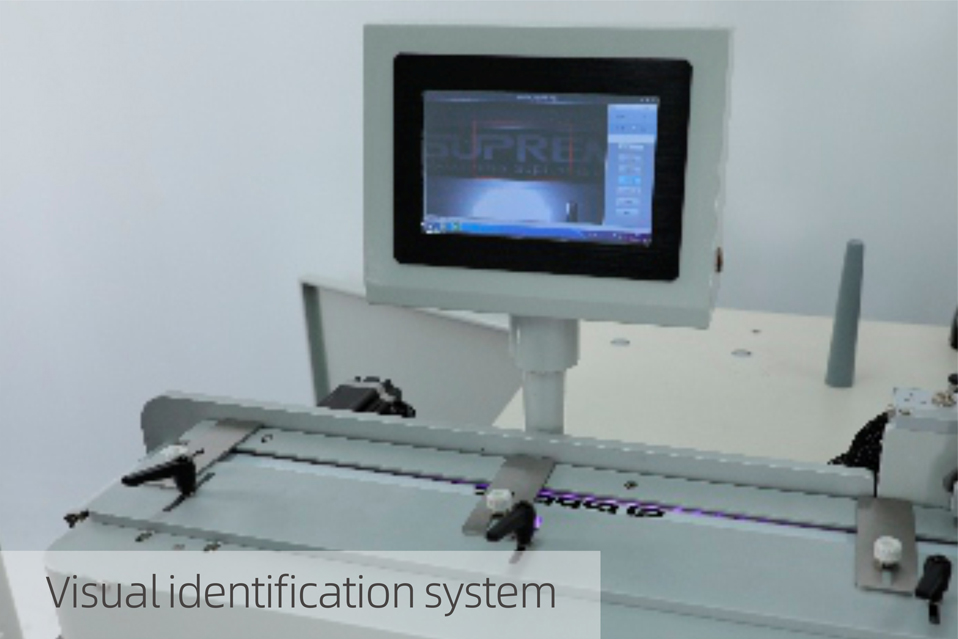

Visual identification system

Technical Parameters

  • Model
    Highest sewing speed
    Sewing range
    Flnished elastic diameter scope
    Needle model
    Air pressure
    Weight
    Dimensions
    Voltage
  • SP-F175
    2,800rpm
    12mm-68mm
    80mm-999mm
    Dp17x11#
    0.5Mpa、1.8L/min
    270Kg
    1420×1155×1500mm(L×W×H)
    Single phase220V
