Product Introduction

SP-F1011/F101/F1015

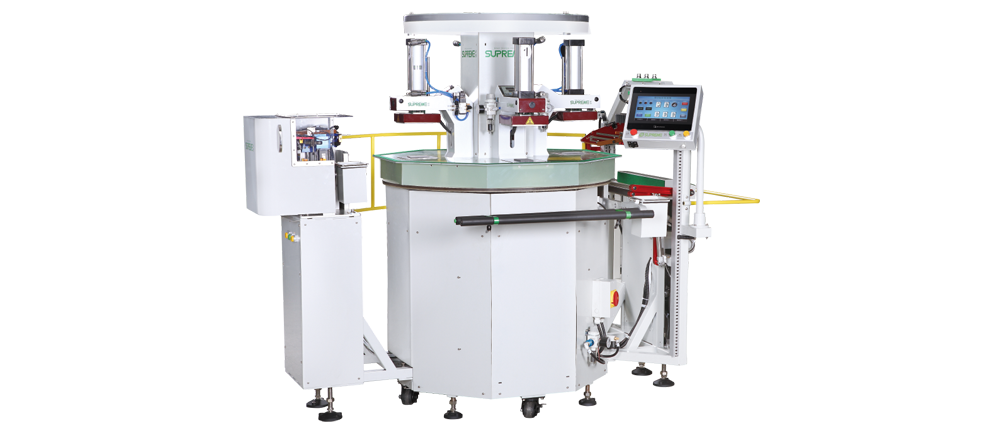

Automatic heat transfer machine
  • SP-F1011
  • SP-F101
  • SP-F1015

Advantages

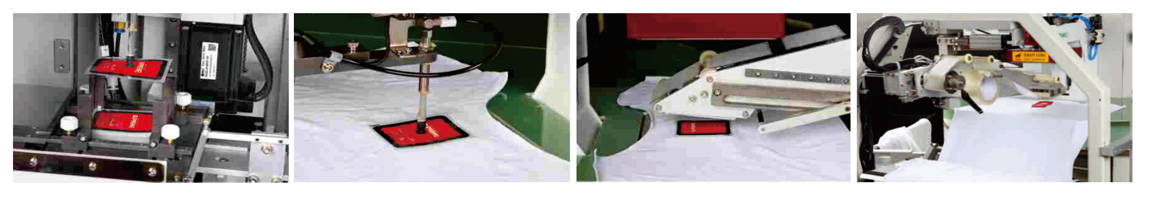

  • The automatic heat transfer machine has an automatic constant temperature setting, a vacuum suction device, and the fabric is not easy to move during the pressing process with even pressure. The robot arm feed the labels automatically in same direction .
  • Robot arm automatically tears the film, collects and counts the label with 360-degree lighting and other functions.

Advantages

  • SP-F1015
  • Ironing head part: all the ironing head temperature values can be set through the touch screen
  • Light curtain start function: The equipment can know the working status of the operating table in real time through the light curtain detection, and can tear the label and collect the small pieces (the distance from the center to the edge of the piece is ≥280mm)

Efficiency

  • Automatically send, receive, and change labels, automatically receive materials, and automatically count.
  • The 8-hour output is 4300-4600 pieces/person. Compared with the traditional process, the efficiency is increased by 3.75 times.

Application

  • Used for heat transfer labeling process for soft fabrics
  • Heat transfer range: 16~150mm
  • Receiving range: ≥280mm

Technical Parameters

  • Model
    Application
    Minimum label size
    Maximum label size
    Voltage
    Air pressure
    Weight
    Machine size
    Power
    Station distinguish
  • SP-F1011
    Knitted fabric and woven fabric
    16×16mm
    150×150mm
    Single phase220V
    0.5Mpa、56 L/min
    360Kg
    1760×1650×1750mm（L*W*H）
    4kw
    Four stations
  • SP-F101
    Knitted fabric and woven fabric
    16×16mm
    150×150mm
    Single phase220V
    0.5Mpa、56 L/min
    360Kg
    1760×1650×1750mm（L*W*H）
    4Kw
    Five stations
  • SP-F1015
    Knitted fabric and woven fabric
    16×16mm
    150×150mm
    Single phase220V
    0.5Mpa、56 L/min
    360Kg
    1760×1650×1750mm（L*W*H）
    4Kw
    Five stations
