Product Introduction

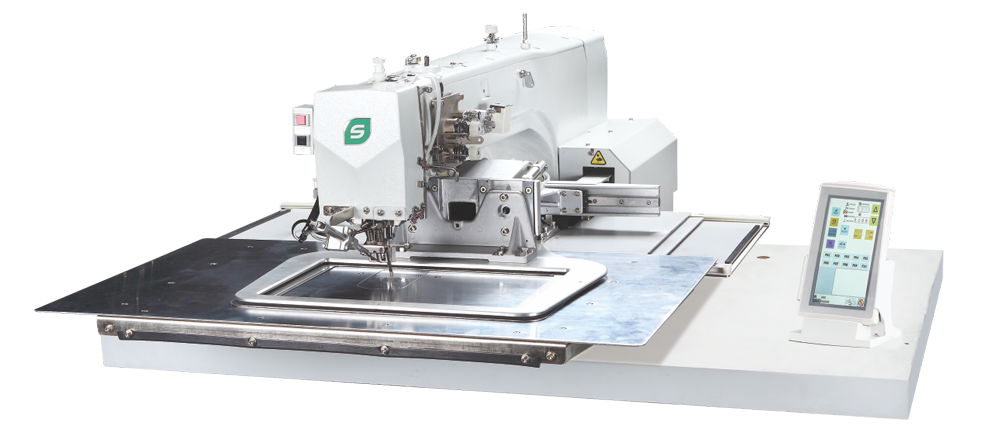

SP-2210AS/3020AS-H/DN

Double Needle Pattern Tacker
  • SP-3020AS-H/DN
  • SP-3020AS-M/DN
  • SP-2210AS-H/DN

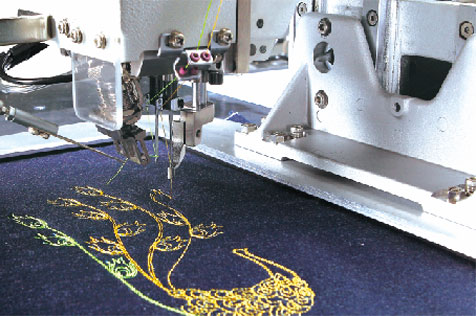

Double Color Stitching Sample

Double needle bar device

Applied to various types of supreme machine,this device helps you to experience high-efficiency of double needle Supreme sewing machine.

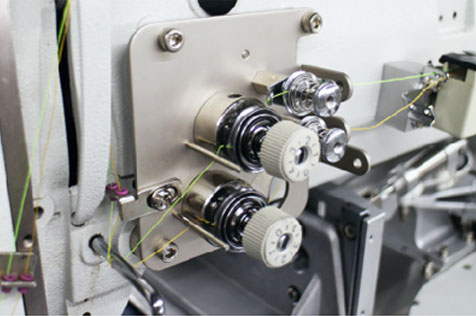

Electric tension device

Technical Parameters

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding mode
    Stitch Length
    Presser foot drive method
    Press foot height
    Motor
    Power
    Air pressure
    Max. needles number
    Maximum storage of stitch
    2- step presser foot
    Big foot presser height
    Big foot presser method
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Thread Wiper
    Cutting device
    Machine size
    Packing size
    Weight
  • SP-3020AS-H/DN
    Sing-needle flat seam
    2,800 rpm
    300×200mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    Pneumatic
    Max. 30mm
    AC servomotor 550W
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8 L/min
    20,000 needles/1 pattern
    Maximum 500000stitch in inner storage
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    1200×1200×1250
    1300×1300×1400
    240Kg
  • SP-3020AS-M/DN
    Sing-needle flat seam
    2,800 rpm
    300×200mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    Pneumatic
    Max. 30mm
    AC servomotor 550W
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8 L/min
    20,000 needles/1 pattern
    Maximum 500000stitch in inner storage
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    1200×1200×1250
    1300×1300×1400
    240Kg
  • SP-2210AS-H/DN
    Sing-needle flat seam
    2,800 rpm
    220×100mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    Pneumatic
    Max. 30mm
    AC servomotor 550W
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8 L/min
    20,000 needles/1 pattern
    Maximum 500000stitch in inner storage
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    1200×900×1230
    1300×1000×1350
    170Kg
