Product Introduction

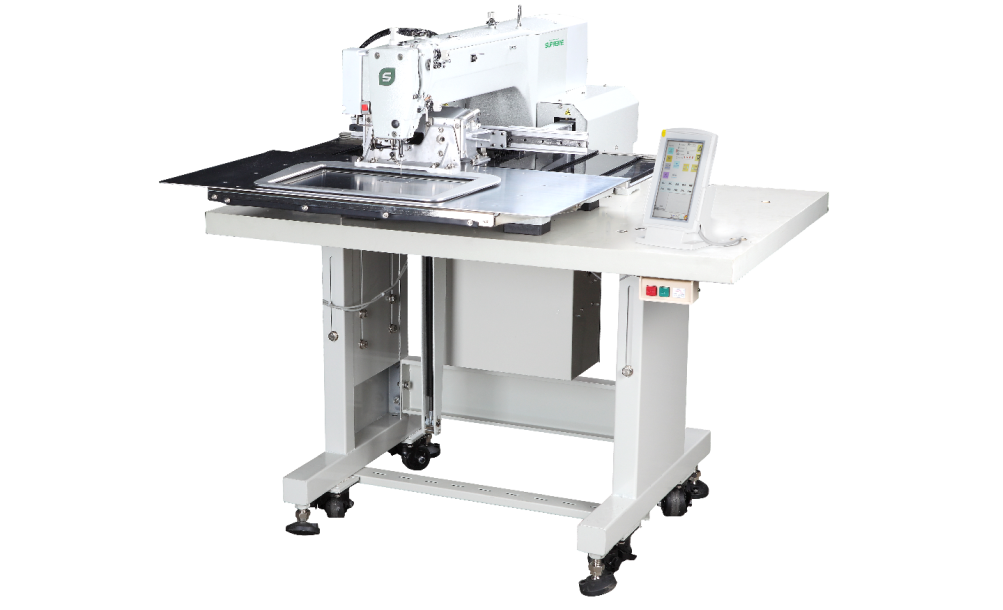

SP-3020AS

Electronic Pattern Sewing Machine
  • SP-3020AS-H/M/X
  • SP-3020AS-H/HM
  • SP-3020AS-M/HM
  • SP-3020R-H
  • SP-3020R-M
  • SP-3020AS-HF/KM
  • Video1
  • Video2

Characters

  • Touch screen panel
  • Oil-free needle bar
  • Clean sewing
  • Simple operation, easy &accurate positioning
  • Unique upper thread catching device
  • New pulling thread-slacking device ( National Patent)
  • It is suitable for shoes ,bags and cuff of t-shirts ,which improves productivity by 100% -300%.

Three positional feeding plate(optional)

  • Applied for layers of combined model plates in various kinds .
  • Clamping and sewing simultaneously, the machine reduces the time wasted on waiting and improves efficiency.
  • Automatic positioning and model plate scanning before start .
  • Successive and automatic program changing .
  • Sewing layers of combined patterns in same fabric ,this device reduces the producing period by using same table&stand.

Technical Parameters

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding mode
    Stitch Length
    Maximum stitch amount
    Storage amount of stitches
    Presser foot drive method
    Press foot height
    2- step presser foot
    Big foot presser height
    Big foot presser method
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Thread Wiper
    Cutting device
    Customer program amount
    Recyle programme No.
    Motor
    Power
    Air pressure
    Machine size
    Packing size
    Weight
  • SP-3020AS-HF/KM
    Sing-needle flat seam
    3000 rpm
    Max.300×200mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    500000 stitch can be stored
    Pneumatic
    Max. 30mm
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8L/min
    1200×1200×1300
    1300×1300×1400
    240kg
  • SP-3020AS-H/HM
    Sing-needle flat seam（Exchange molded shoes）
    2,800 rpm
    Max.300×200mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    500000 stitch can be stored
    Pneumatic
    Max. 30mm
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8L/min
    1200×1200×1300
    1300×1300×1400
    240kg
  • SP-3020AS-M/HM
    Sing-needle flat seam（Exchange model clothing）
    2,800 rpm
    Max.300×200mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    500000 stitch can be stored
    Pneumatic
    Max. 30mm
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8L/min
    1200×1200×1300
    1300×1300×1400
    240kg
  • SP-3020R-H
    Sing-needle flat seam（Double rotation of thick material）
    2,800 rpm
    Max.300×200mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    500000 stitch can be stored
    Pneumatic
    Max. 30mm
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8L/min
    1200×1200×1300
    1300×1300×1400
    240kg
  • SP-3020R-M
    Sing-needle flat seam（Double rotation of medium thick material）
    2,800 rpm
    Max.300×200mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    500000 stitch can be stored
    Pneumatic
    Max. 30mm
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    50
    9
    AC servomotor 550W
    Single phase100~120V、200~240V、3-phase200~240V、380~415V、350V
    0.5Mpa、1.8L/min
    1200×1200×1300
    1300×1300×1400
    240kg
