Product Introduction

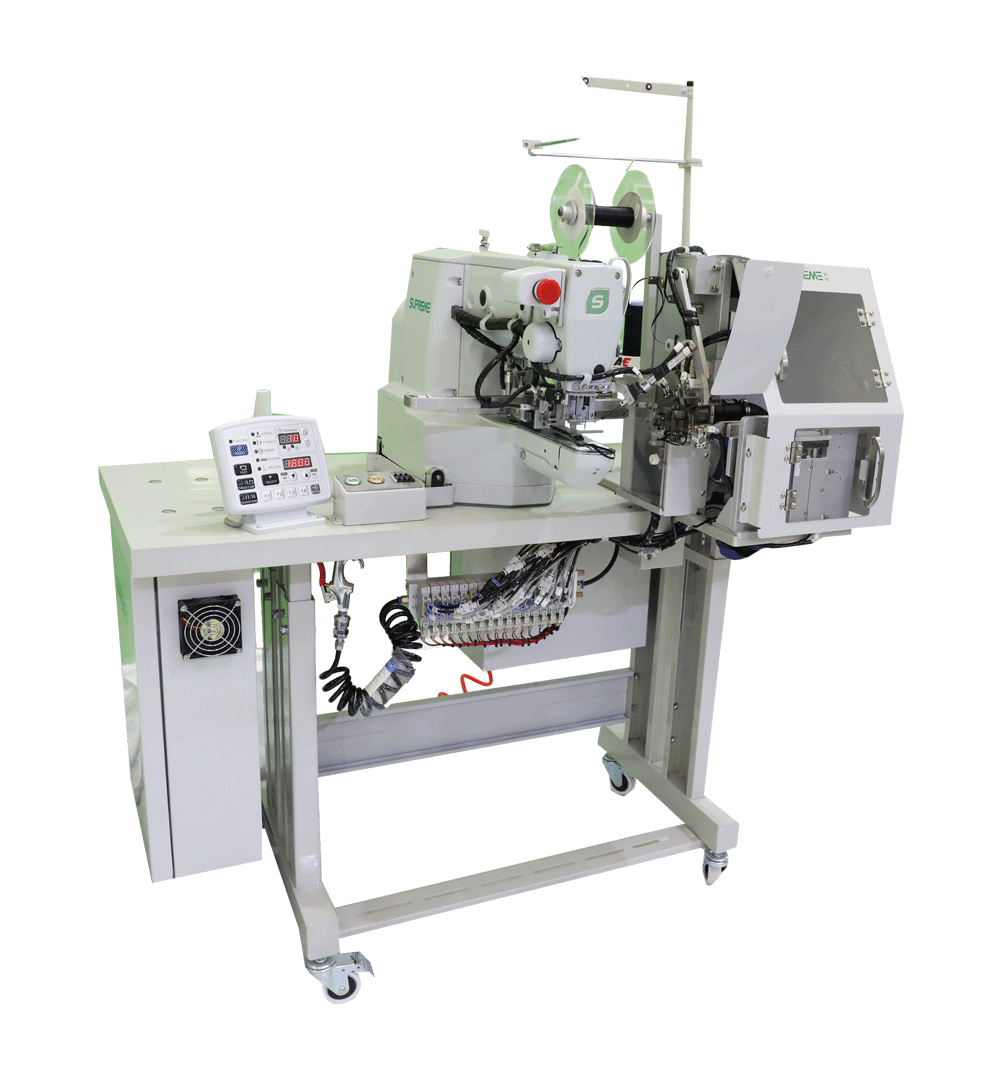

SP-F204

Automatic sewing machine with hanging ear strap

Advantages

  • Use a hot cutter to cut the material to prevent the webbing from falling apart after being cut.
  • The length of the webbing can be adjusted according to the needs, and the webbing folding and nonfolding modes can be switched with one key.
  • The equipment has a single-step mode and an automatic mode. Feeding by robot arm stable feeding and high efficiency.

Efficiency

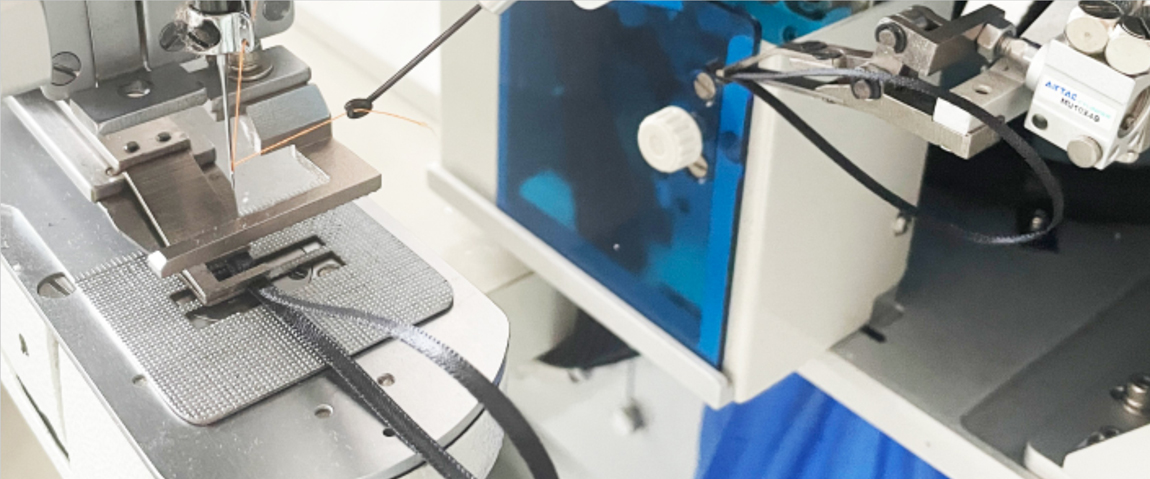

  • Automatic feeding, folding, bar tacking and sewing are completed at one time. Production
  • efficiency: 2 seconds / piece

Application

Applicable to sewing of garment hanging ear straps

Technical Parameters

  • Model
    Highest sewing speed
    Sewing range
    Webbing length
    Webbing width
    Air pressure
    Voltage
    Weight
    Dimensions
  • SP-F204
    3200rpm
    Max 40×30mm
    80-220mm (Double fold, double fold)
    4mm
    0.5Mpa
    Single phase 100V/220V
    120Kg
    1140×935×1200mm(L×W×H)
