Product Introduction

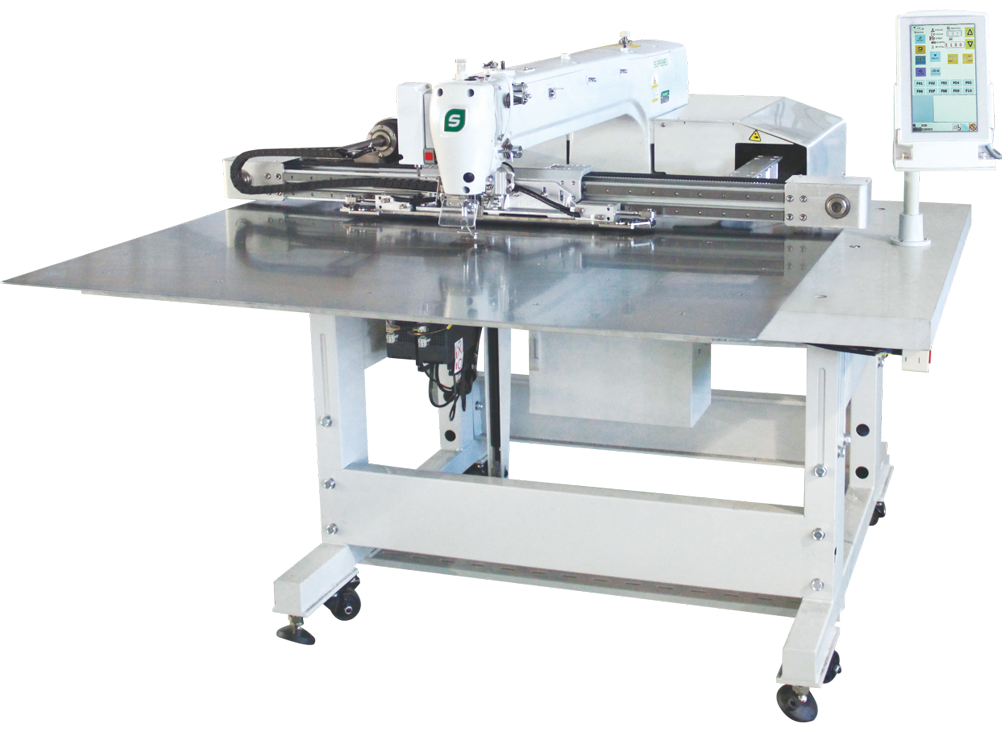

SP-6055BS

Electronic Pattern Sewing Machine
  • SP-6055BS-H/M/X

Characters

  • This machine uses direct drive servo motor ,which reduces the power by 50% compared with traditional machines,the lowest power consumption in pattern machines.
  • With the highest sewing speed of servo motor,it improves sewing efficiency ,saves more energy and reduces sewing time by 19% percent compared with traditional machine.

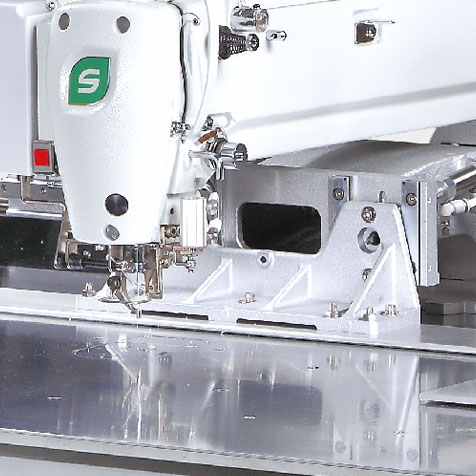

Stand foot presser equipment

Using big area foot presser device as standard equipment and more stable model plate of fixed pattern，it reduces shake during sewing to a large extent which in return renders more precise and beautiful stitching lines.

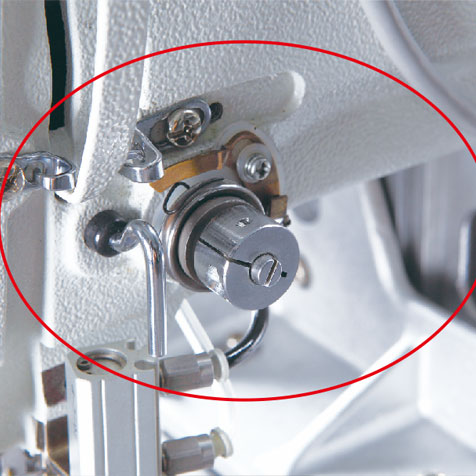

Electric tension device

With Variable tension of multi segments ,electric tension device leaves less margin and provides better stitching trace.

Upper thread clamping device

Effectively prevent the problem of thread take-off at the beginning of sewing ,which avoids nest-like phenomenon.

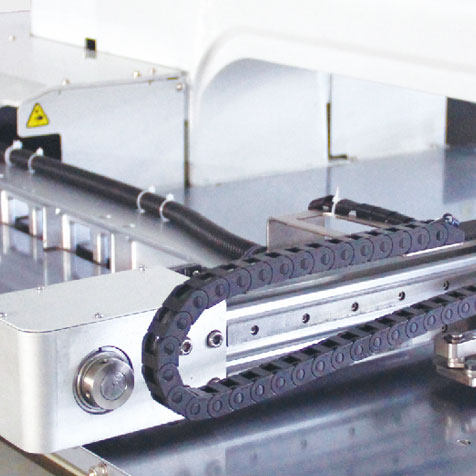

Servo drive (X,Y)

Equipped with new servo motor system,the feeding of X,Y directions is powerful enough which enables more precise sewing pattern. Using latest control technology. it extends the sewing area to a larger area. It can cut thick line sharply due to stable cutting device.

Disconnection detection function

Can be used to detect thread-broken .It automatically stops and informs the operator once it detected broken thread.

Low power consumption

This machine uses direct drive servo motor, which reduces the power by 50% compared with traditional machines, the lowest power consumption in pattern machines.

High speed, high efficiency

With the highest sewing speed of servo motor, it improves sewing efficiency, saves more energy and reduces sewing time by 19% percent compared with traditional machine.

Technical Parameters

  • Model
    Line
    Highest sewing speed
    Sewing area
    Cloth feeding mode
    Stitch Length
    Maximum stitch amount
    Storage amount of stitches
    Presser foot drive method
    Press foot height
    2- step presser foot
    Big foot presser height
    Big foot presser method
    Rising amount of intermittent foot presser
    Stroke by intermittent presser foot
    Thread Wiper
    Cutting device
    Motor
    Power
    Air pressure
    Machine size
    Packing size
    Weight
  • SP-6055BS-H/M/X
    Sing-needle flat seam
    2,800 rpm
    Max. 600×550mm
    Intermittent feeding(Servo motor drive mode)
    0.05-12.7mm
    20,000 needles/1 pattern
    Maximum 500000stitch in inner storage
    Pneumatic
    Max. 30mm
    All-in-one presser foot
    Max. 30mm
    All-in-one presser foot
    22mm
    0 or 2-10mm（Factory defaults：3mm）
    Standard facility
    Standard facility
    AC servomotor 550W
    Single phase200~240V
    0.5Mpa、1.8L/min
    1400×1800×1400
    1500×1900×1500
    350Kg
